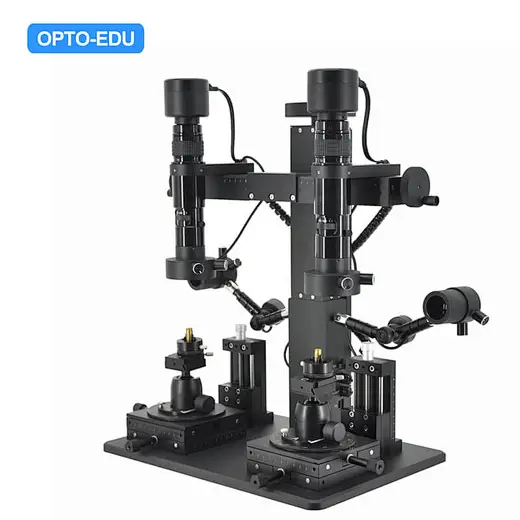

A18.4902 Dual Light Path Full Digital Comparison Microscope

A18.4902

Quantity:

Contact Now

add to cart

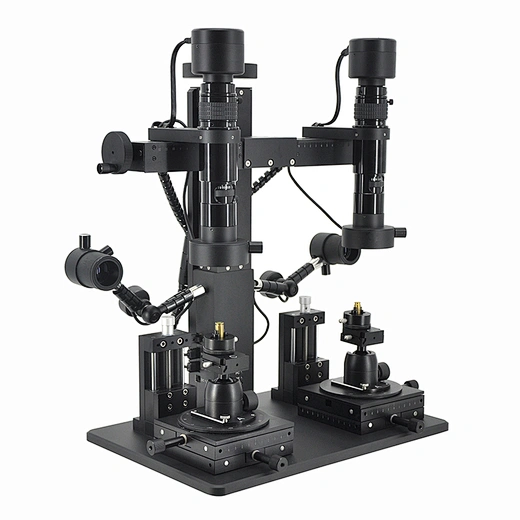

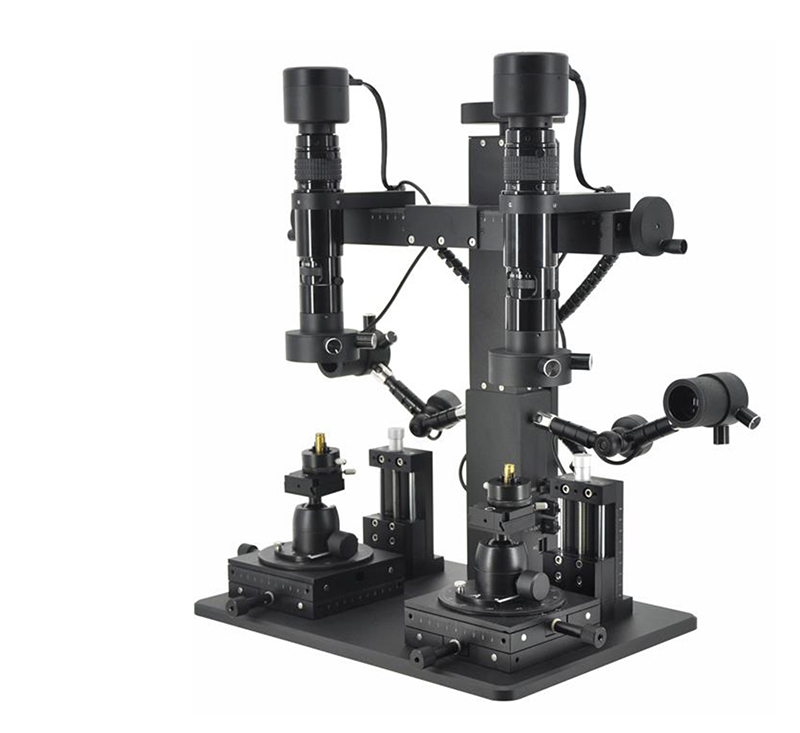

Bullet Digital Comparison Microscope

Comparison Microscope Parts

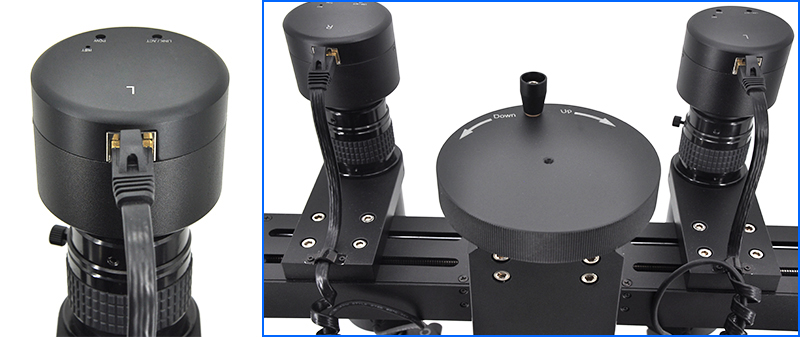

Dual 8.0M High Resolution Digital Microscope Comparison Camera

To Preview & Snapshot Drawing Image

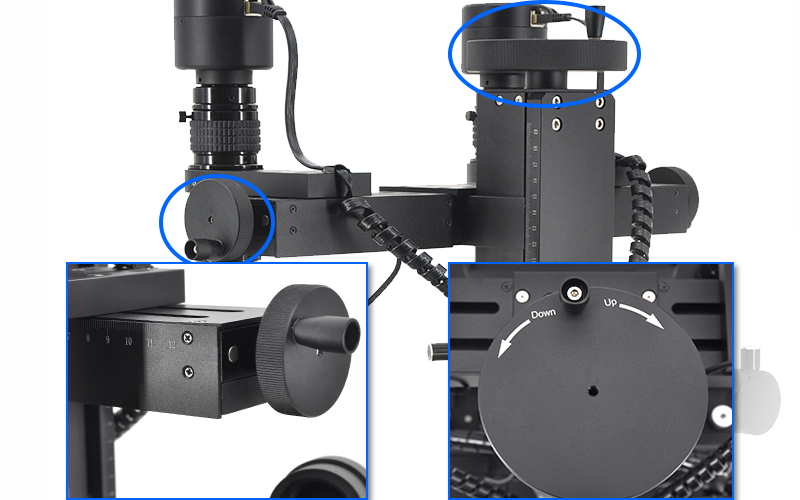

Manual Control of bullet comparison microscope drawing

Manual Control Comparison Microscope Body Joint Or Separate Up/Down

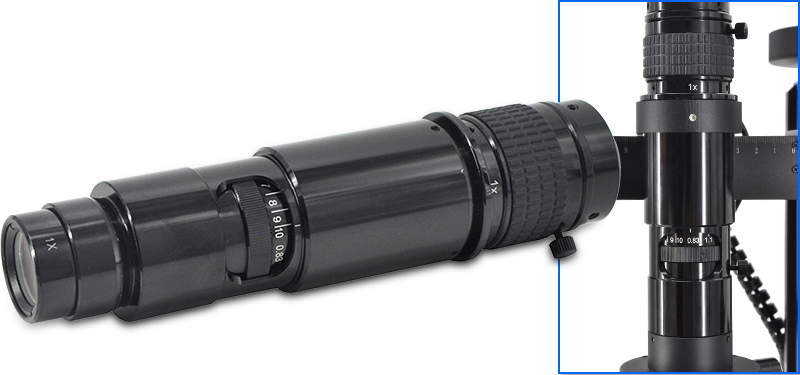

High Quality Optical Zoom digital microscope comparison

High Quality Optical Zoom Comparison Microscope 0.38x-10x

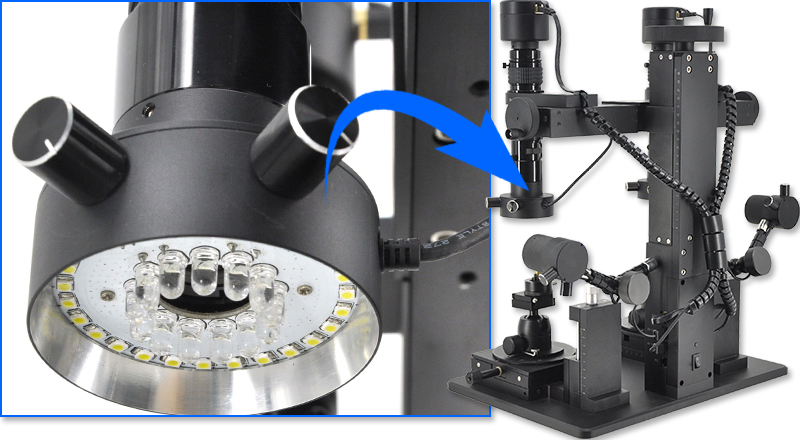

Dual Coaxial LED of bullet comparison microscope drawing

Dual Coaxial LED Diffuse & External Light Supply Super Wide Dynamic & Super Low Intensity Illumination

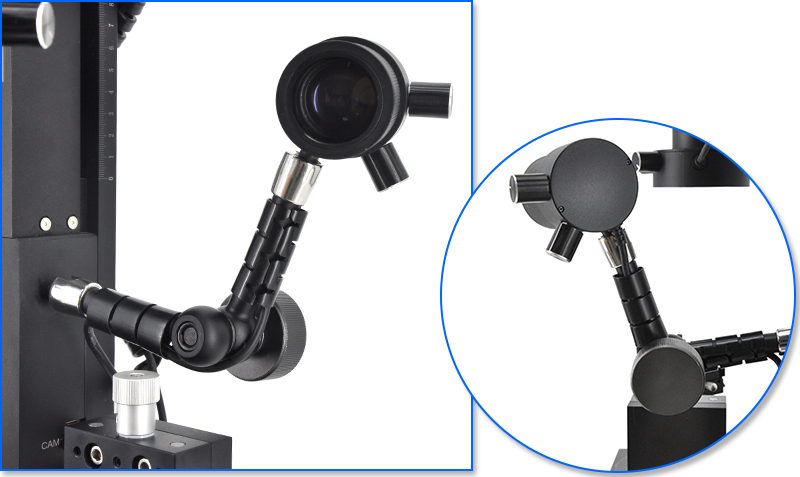

7 Colors LED Light of bullet comparison microscope drawing

7 Colors LED Light On Universal Joint Arm

To Supply Full Range Illumination

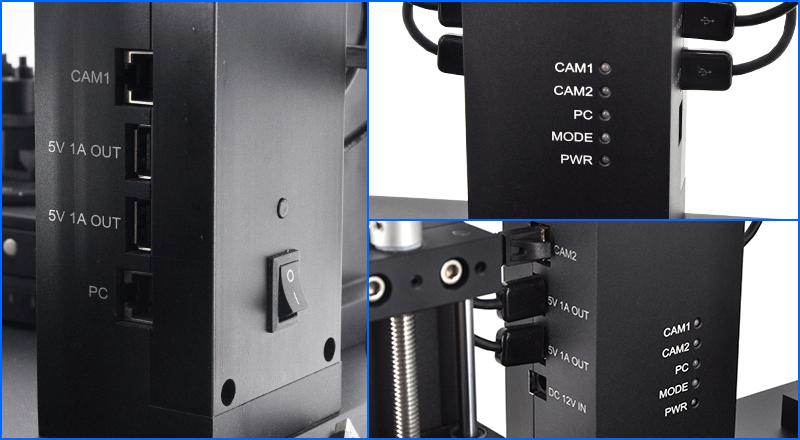

All Ports of bullet comparison microscope drawing

All Comparison Microscope Ports & Indicator Built-in Main Body: CAM, 5V1A, PC, MODE, PWR ,ON/OFF

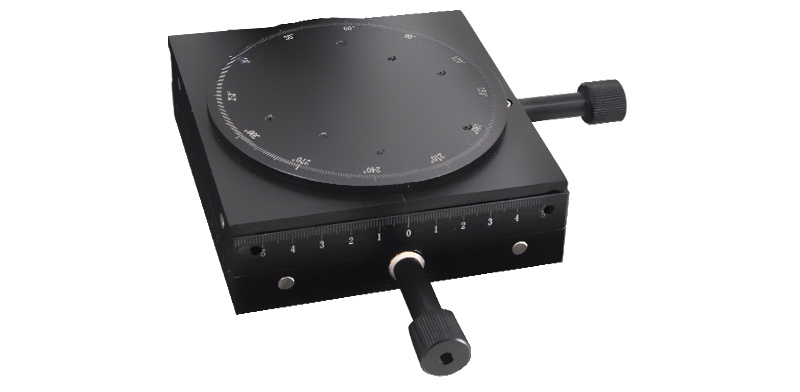

workbench of bullet comparison microscope drawing

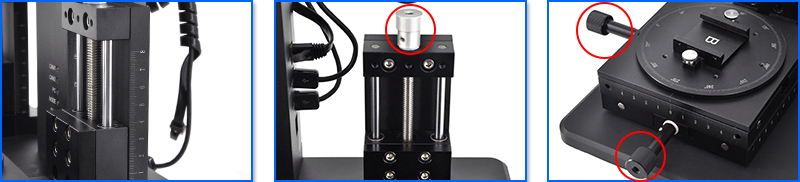

Comparison microscope workbench adjustment

High Precision Double Layer Square & Round Working Stage Manual Control X/Y/X/R Free Movement

Bullet Comparison Microscope Parts

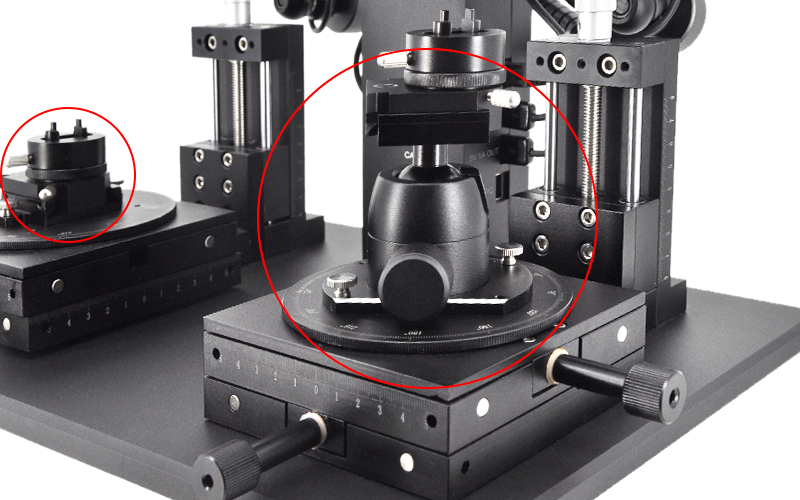

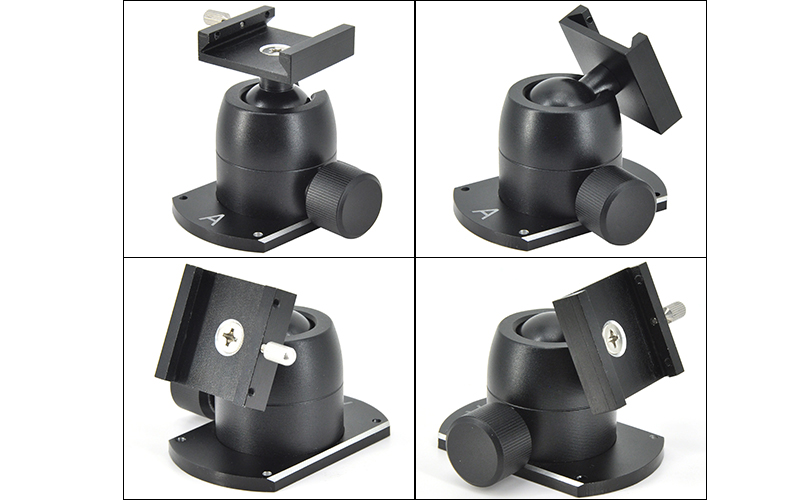

grippers of bullet comparison microscope drawing

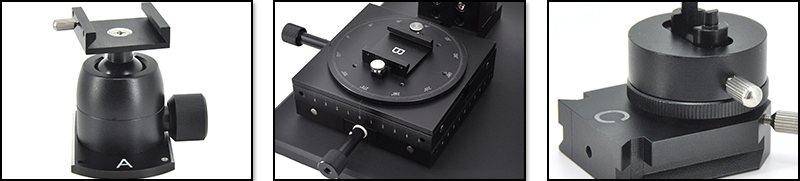

grippers comparison microscope advantages

Multiple Workbench To Hold All Kinds Objective Easily

Smart Workbench With Universal Shaft For X/Y/Z/R Axis Fine Tuning

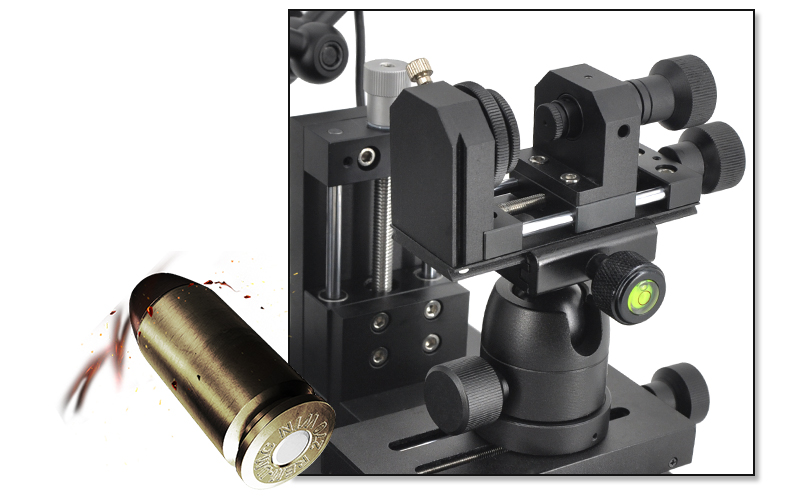

Bullet Holder Set To Hold & View All Kinds Of Cartridge, Bullet, Other Objects In Different Angle And Position Freely. Each Bullet Microscope Include 2 sets

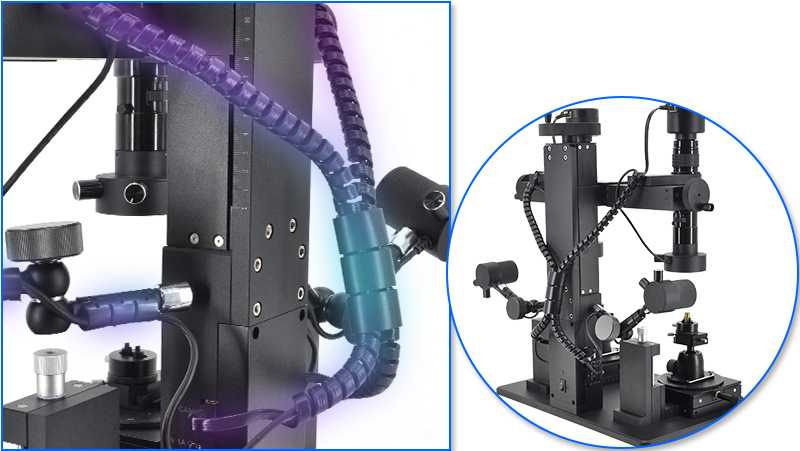

Extra-hard of comparison microscope drawing

Extra-hard Wear-resistant Aluminum Alloy Housing & To Bind A Line With A Protective Shell

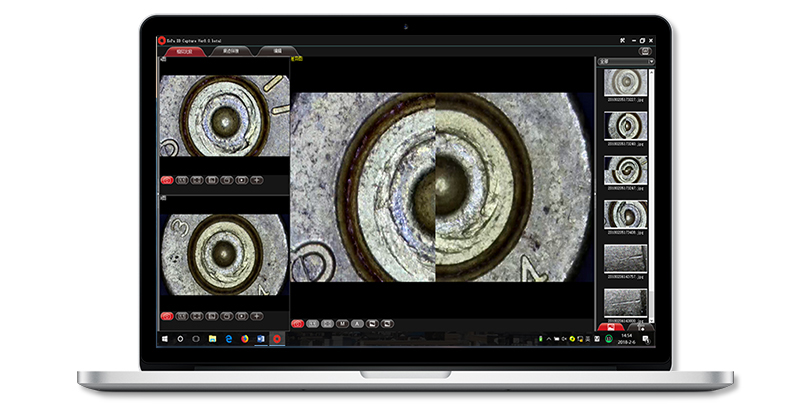

Professional Forensic Crime Drawing Image Comparison Analysis Software
Multiple Windows To Preview Dynamic And Static Images	Pixels Comparison Output Comparison Results Automatically
Dedicated Measurement Software	Overlap, Cut, Full Field Of View, Transparency Settings

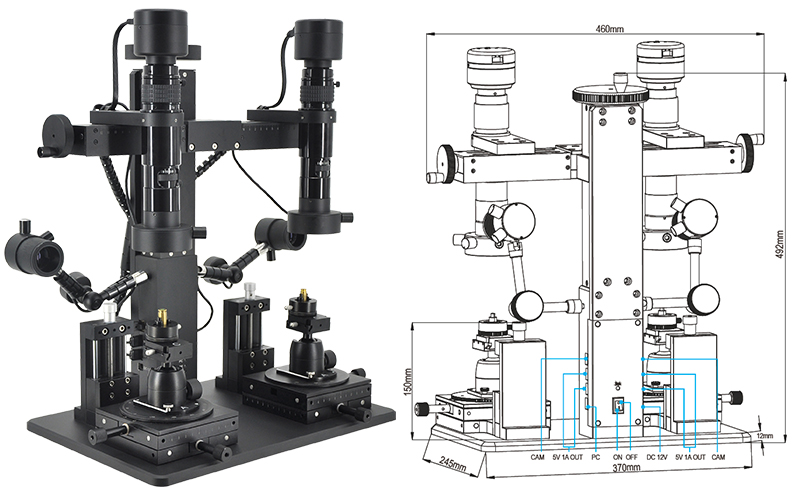

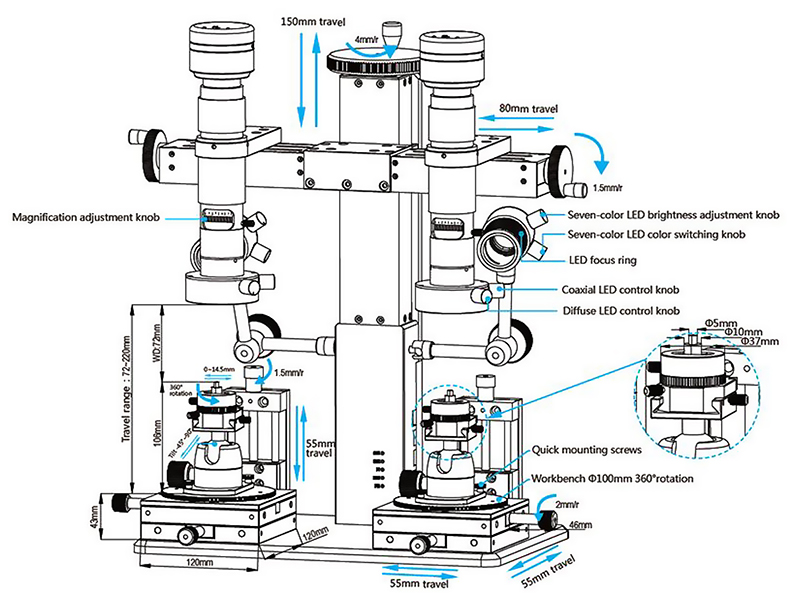

comparison microscope drawing structure diagram

Comparison Microscope Advantages

● This digital comparison microscope is history an ideal instrument for police stations.

● Procuratorial organs and courthouses to identify finger prints, shot marks, tool traces, seals and writings.

● For colleges and universities to use for educational purposes.

● It is also suitable for banks, archeological studies, electronics researches, biological science and agriculture, etc.

A18.4902 Digital Forensic Comparison Microscope Specification
Comparison Microscope Hardware configuration
Image Sensor	SONY IMX274 COMS Sensor
Expose Mode	Rolling Shutter .
Maximum Resolution	3840 x 2160 (8,294,400 pixels)
Sensor Optical Format	1/2.5''
Pixel Size	1.62μm x 1.62μm
Dynamic Range	>80dB
SNRmax	≥50dB
Spectral Charactristics	380-650nm
Exposure Capability	Real-time Auto, Single Auto, Manual Adjustment
White Balance	Real-time Auto, Single Auto, Manual Adjust R G B Seperately
Record Format	Snapshot Picture Format: JPG Resolution: 3840x2160 Record Video Format: MOV Resolution: 3840X2160@25FPS,2592X1944@25FPS,2048x1536@25FPS
Comparison Microscope Parameters
Optical Magnification Of Lines	0.83x~10x
Optical Resolution Of Lines(um)	5um
Working Distance(mm)	72mm
Observation Range(mm)	0.65x0.36~8.2x4.6mm
Comprehensive Magnification	Full Screen Display On A 21-inch 16:9 Minitor:57x~715x
Comprehensive Magnification	Full Screen Display On A 17-inch 16:9 Minitor:46x~578x
Working Stage	Square Manual Working Stage 12012043mm, Moving Range 555555mm
	Joint Left/Right Moving Range 80mm, Joint Up/Down Range 150mm
	Clamp Working Stage Dia.100mm, 360° Rotatable
	Round Titable Working Stage Moving Range 0-14.5mm, 45°-90° Inclined, 360° Rotatable
Comparison Microscope Ring LEDs( Coaxial & Diffuse LED ) Parameters
Power	<3W
Input Voltage	DC 5V
Dimming Method	0-100% Linear Adjustment
Centric Brightness	Coaxial:≥12000LX (Height 100mm)
Centric Brightness	Diffuse Reflection: ≥42000LX (Height 100mm)
Number Of LEDs	Coaxial Light: 13 Small Angle Highlighting Lamp Beads
Number Of LEDs	Diffuse Light: 40 Bright White LEDs
Color Temperature	5000K~5500K
Adjustment Method	Separate Control (Independently Controlled By One Knob For One Kind Of Light)
Comparison Microscope Seven-color LED Parameters
Power	<3W
Input Voltage	DC 5V
Dimming Method	0-100% Linear Adjustment
Comprehensive Magnification	Red: 610um
	Yellow: 600um
	Warm White: 586um
	Green: 528um
	White: 494um
	Purple: 458um
	Blue: 470um
Adjustment Method	Brightness And Light Switching Are Controlled By Different Knobs
Comparison Microscope Software Environment
Windows System Demand	Microsoft ® Windows ® XP / 7 / 8 /8.1/10(32 & 64 bit)
	CPU: Dual-core 3.0 GHz Or More CPU
	Memory: 4G Or More
	Network:10/100/1000Mbps Compatitable Interface
	At Least 10 GB Available Hard Disk Space
Comparison Microscope Operating Environment
Operating Temperature	0℃~ 40℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~60%RH
Storage Humidity	10~80%RH
