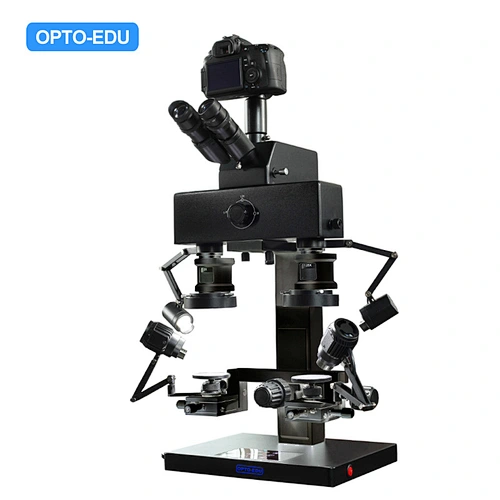

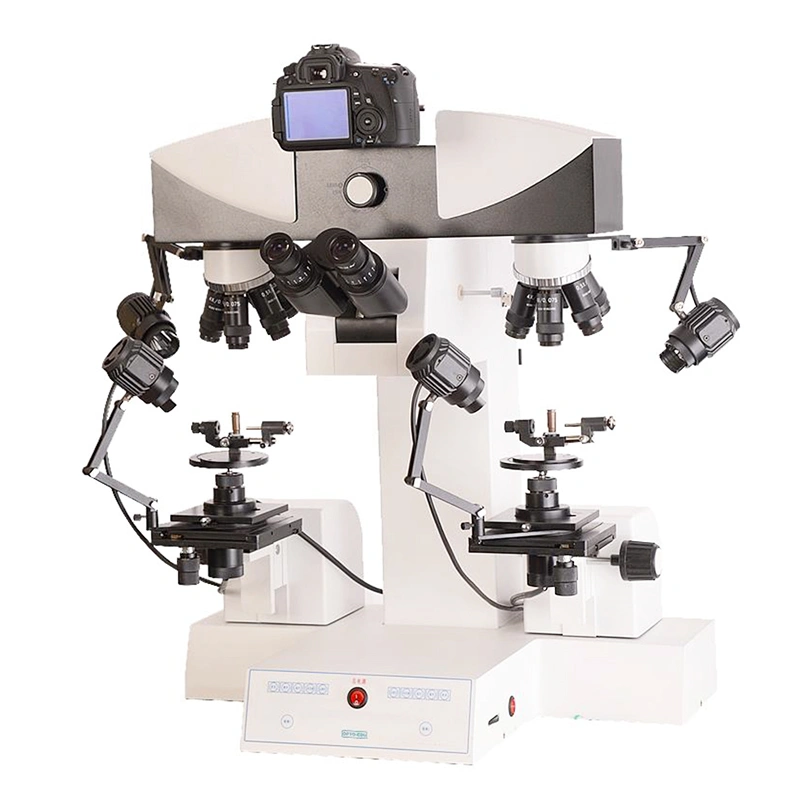

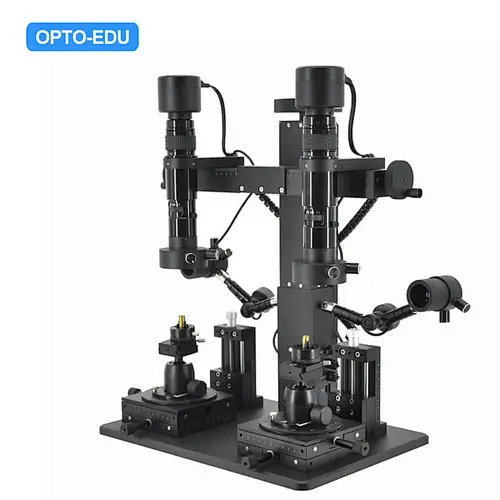

A18.1829 Comparison Microscope Forensic Ballistics, Motorized Digital, 2x~240x
A18.1829
Quantity:
Ballistics Comparison Microscope Uses for Forensic
Ballistics Comparator Microscope Parts
 |

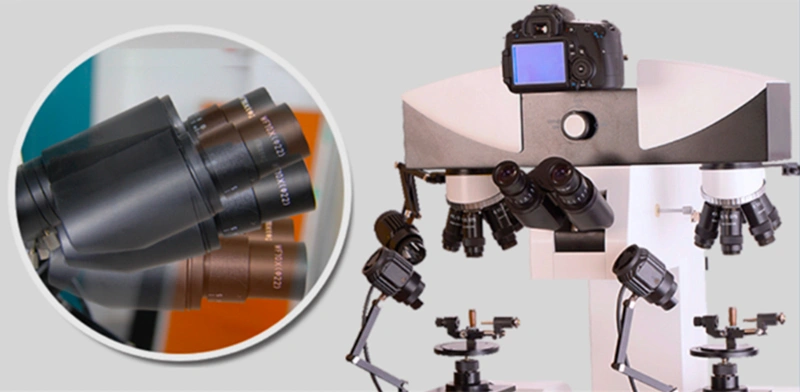

0-45° Tiltable Binocular HeadInterpupillary Distance 48~75mm, Diopter +/-5 Adjustable. Inclination Adjustable for User Easy View |
 |

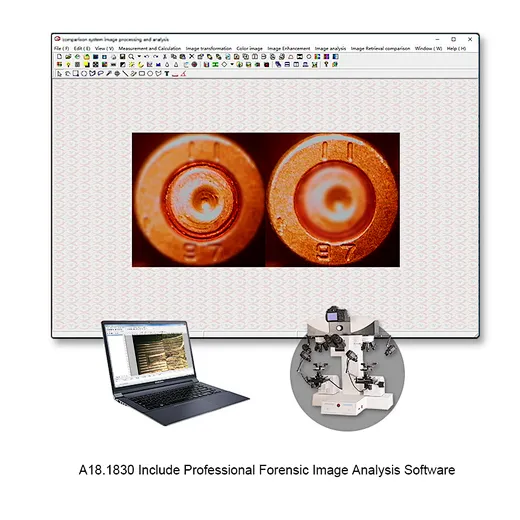

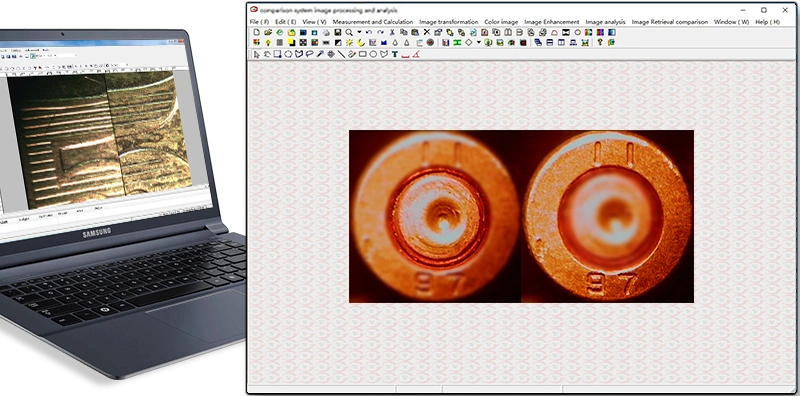

A18.1829 Include Professional Forensic Image Analysis Software for Ballistics Comparison |
 |

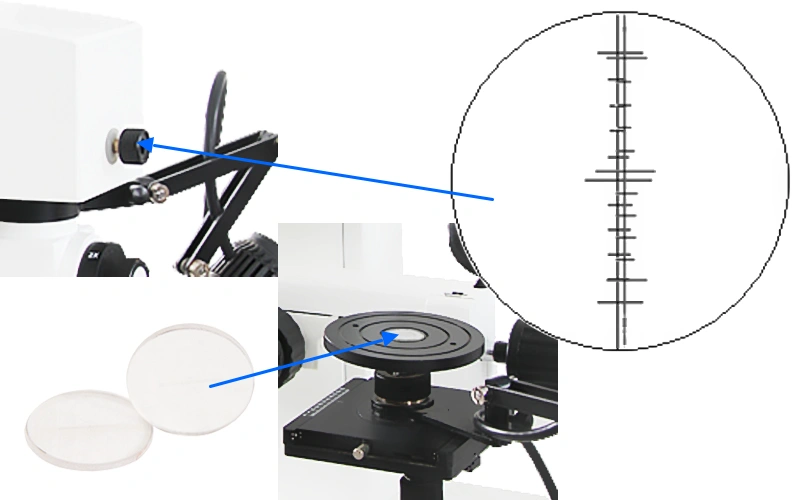

Magnification Correction System,with correcting lens |
 |
 |

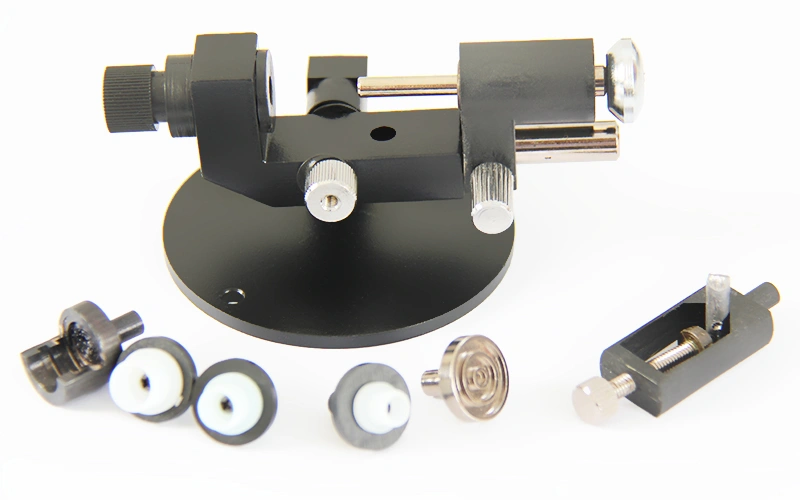

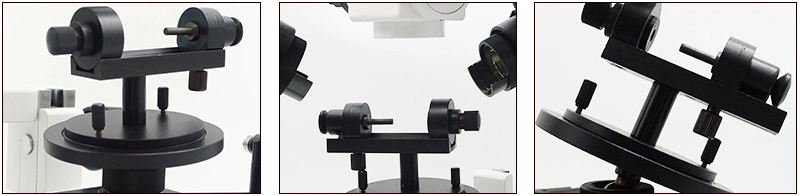

Bullet Holder SetTo hold & view all kinds of cartridge, bullet, other objects in different angel and position freely. Each Microscope Include 2 sets. |
 |
 | |

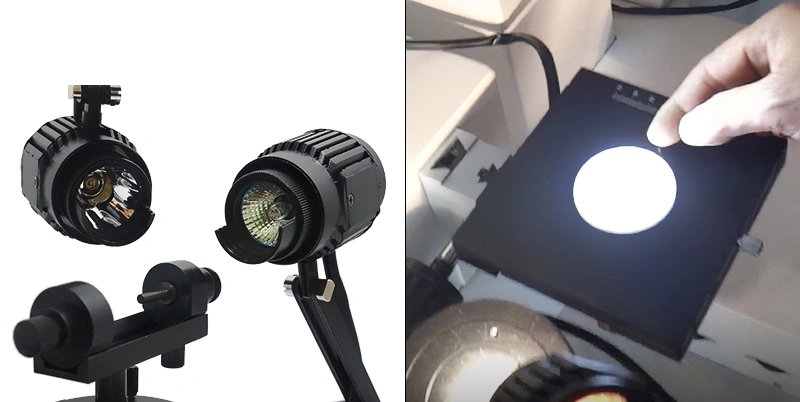

| UV/LED/HAL | Tranmit |
 | |

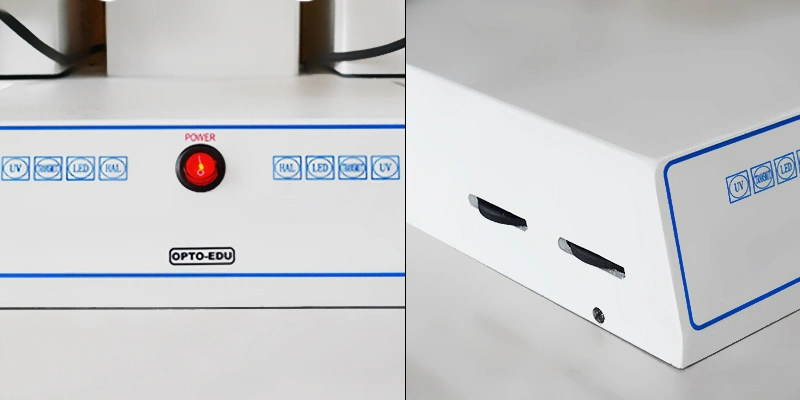

| Light Source Switch | LED/Halogen Dimming |

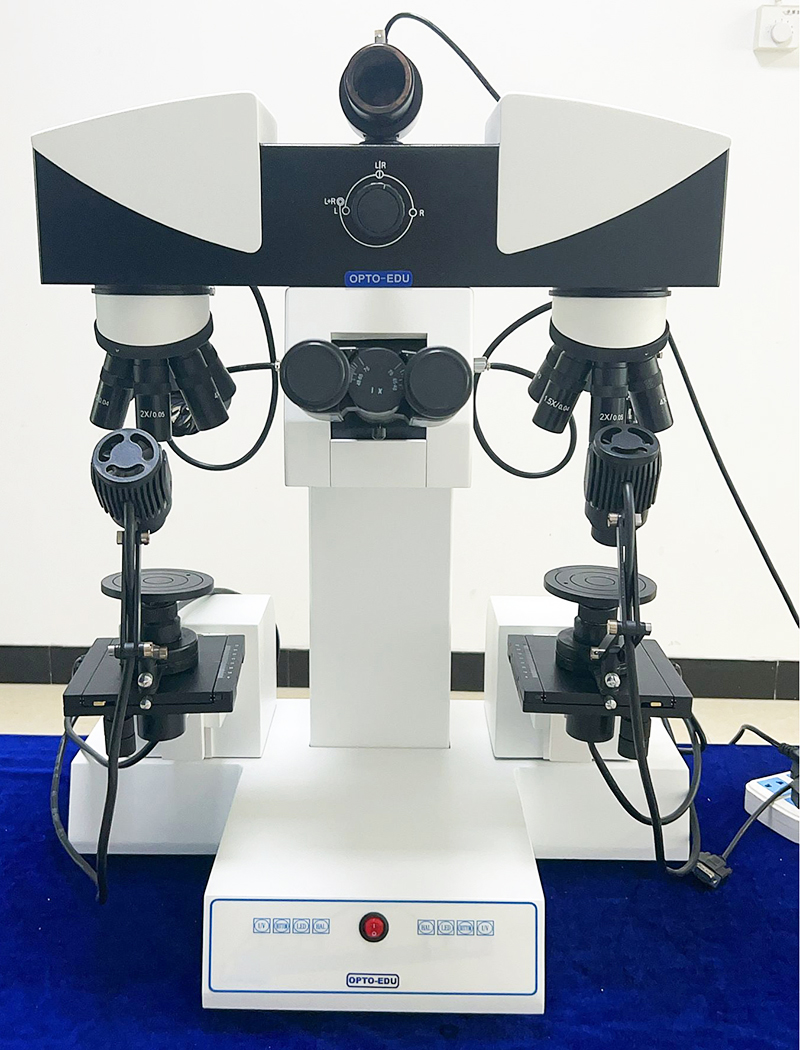

Example of Observing Bullets with Comparison Microscope
 |

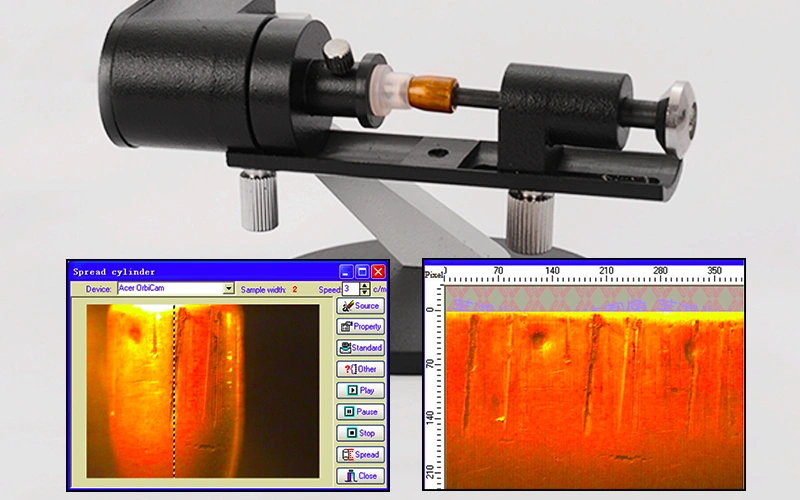

Optional Motorized Bullet HolderTo capture rotating cartridge surface and spread; to observe/compare easily, used with software |
 | |

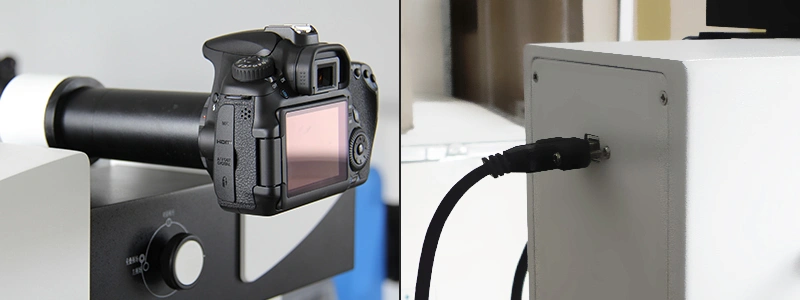

Front View Photo Adapter for SLR Digital Camera | Built-in CCD Camera USB Output |
 |

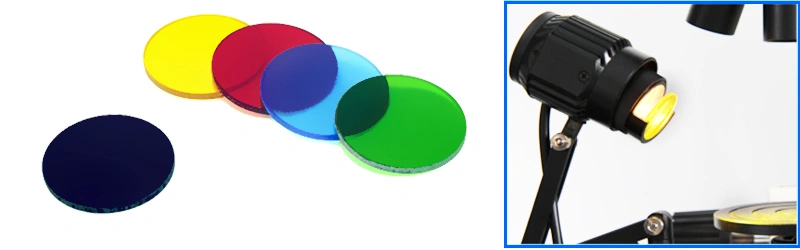

| Ultraviolet Light Len & Filters |
 |

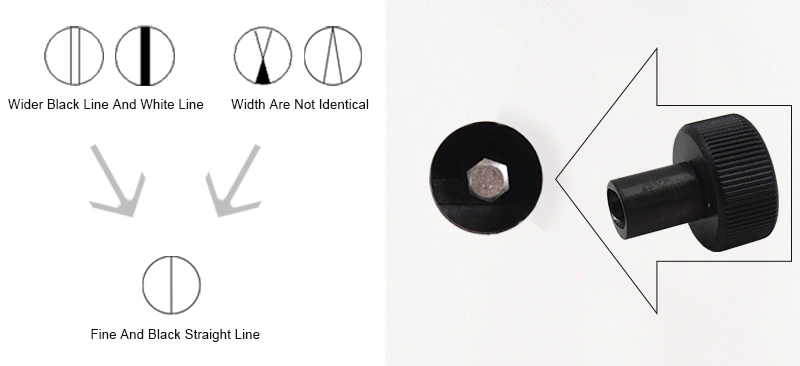

Separation Line Adjust System in Black,with special designed adjust driver |
 |

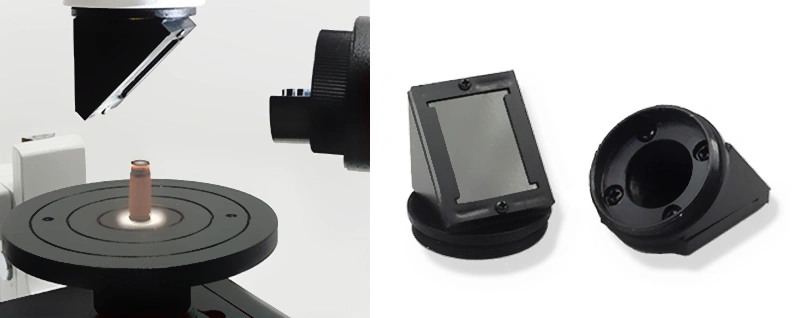

Comparison Microscope Part: Coaxial Light Attachmentto get vertical light path for watching inside deep hole bottom |
 |

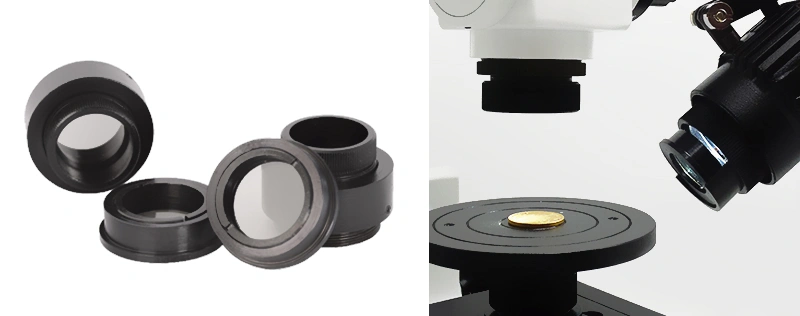

Comparison Microscope Part: Polarizing Light Lens SetTo eliminate flare lights and dazzling lights |
Ballistics Comparison Microsope Lens Parts

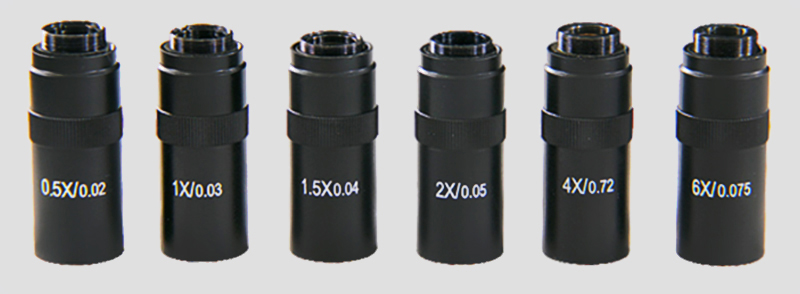

Long Working Distance Infinity Plan Objectives: 0.5x, 1x, 1.5x, 2x, 4x, 6x
 |

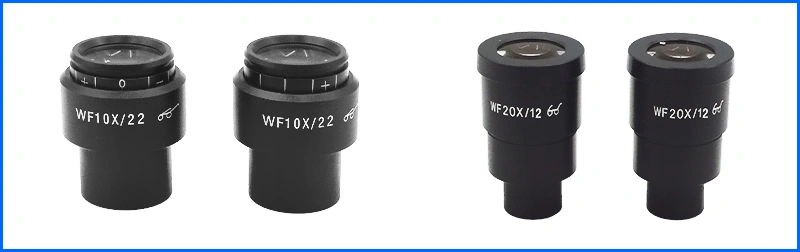

Eyepiece WF 10x/22mm and WF 20x/12mm,high eyepoint, each 2 pcs included |
 |

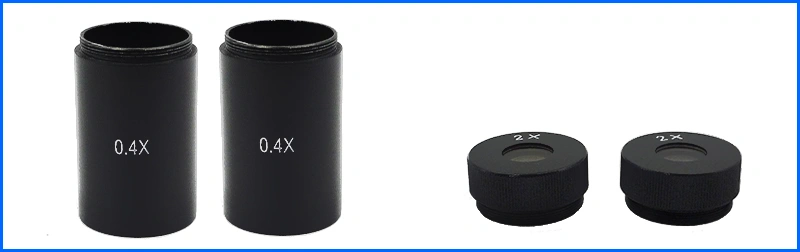

Auxiliary Lens 0.4x and 2x,each 2 pcs included |

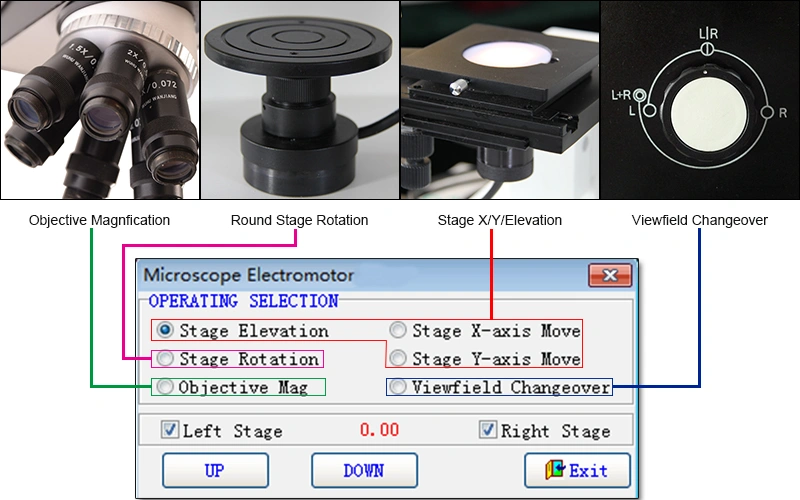

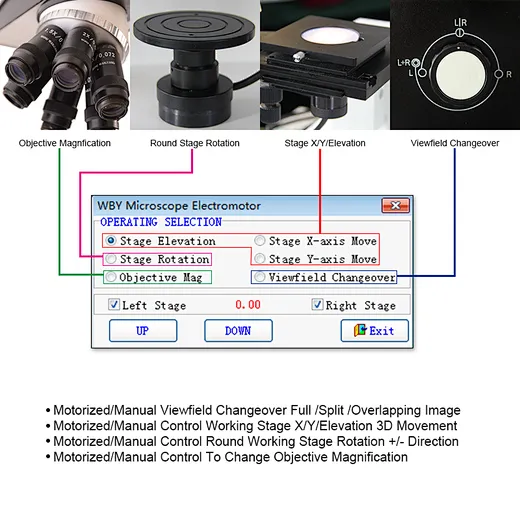

Comparison Microscope Motorized Control Parts
 |
•Motorized/Manual View field Changeover Full /Split /Overlapping Image •Motorized/Manual Control Working Stage X/Y/Elevation 3D Movement •Motorized/Manual Control Round Working Stage Rotation +/- Direction •Motorized/Manual Control To Change Objective Magnification |

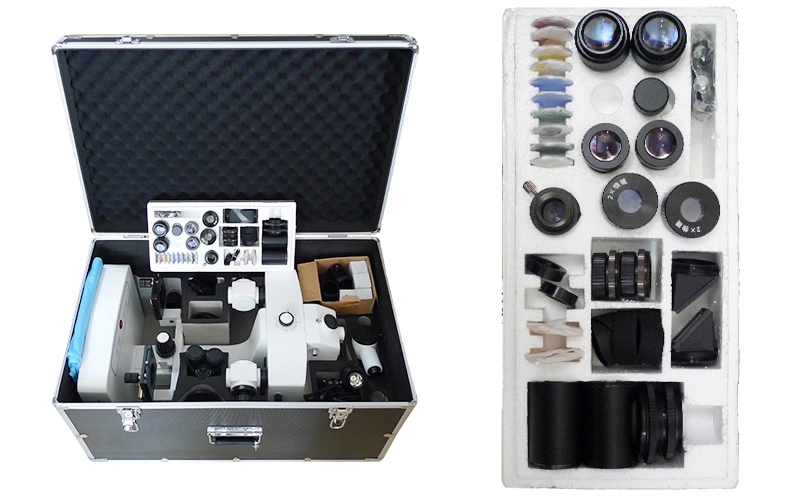

Comparison Microscope Packing List
 |

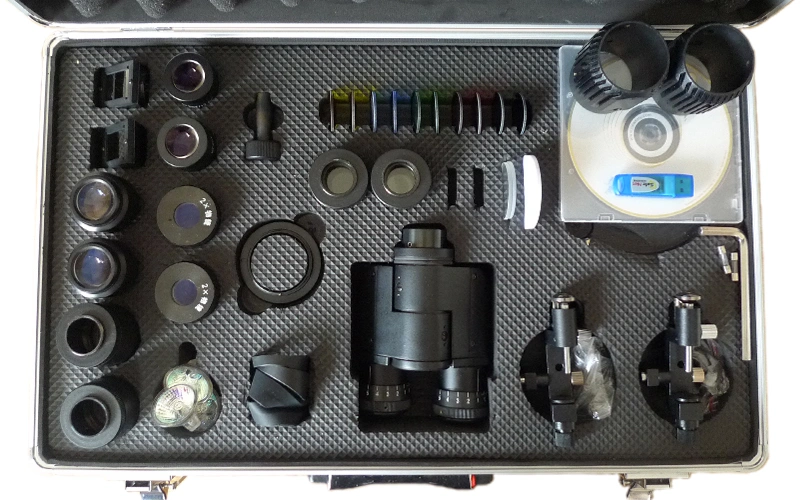

Accessories Packed in Strong Aluminum Box |
| Objective | Eyepiece 10X | Eyepiece 20X | Photograpging & Video System | Working Distance | ||
| Mag./Viewfield φ22mm | Mag./Viewfield φ12mm | |||||
| 1X/0.03 | 10X/φ22 | 20X/φ12 | Measure According to Monitor & Digital Camera | 102mm | ||
| 1.5X/0.04 | 15X/φ15 | 30X/φ8 | ||||
| 2X/0.05 | 20X/φ11 | 40X/φ6 | ||||
| 4X/0.072 | 40X/φ5.5 | 80X/φ3 | ||||
| 6X/0.075 | 60X/φ3.7 | 120X/φ2 | ||||
| 0.5X/0.02 | 5X/φ44 | 10X/φ24 | 138mm | |||
| A18.1829 Motorized Digital Forensic Comparison Microscope,With Motorized Working Table | |||||||
| Magnification | 2x~240x | ||||||
| Head | 0-45° Tiltable Binocular Head, Interpupillary Distance 48~75mm, Diopter +/-5 Adjustable | ||||||
| Eyepiece | WF10x/22mm, High Eyepoint | ||||||
| WF20x/12mm, High Eyepoint | |||||||
| Nosepiece | 6 Hole Click Stop Nosepiece | ||||||
| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x | ||||||
| Auxiliary Lens 0.4x, 2.0x | |||||||
| Working Distance | 101mm | ||||||
| View Field | Dia. 2.3~62mm | ||||||
| Magnification Correcting | Magnification Correction System, With Correcting Lens | ||||||
| Separation Line Adjusting | Separation Line Adjust System In Back, With Special Designed Adjust Driver | ||||||
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm | ||||||
| Round Tiltable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable | |||||||
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm | |||||||

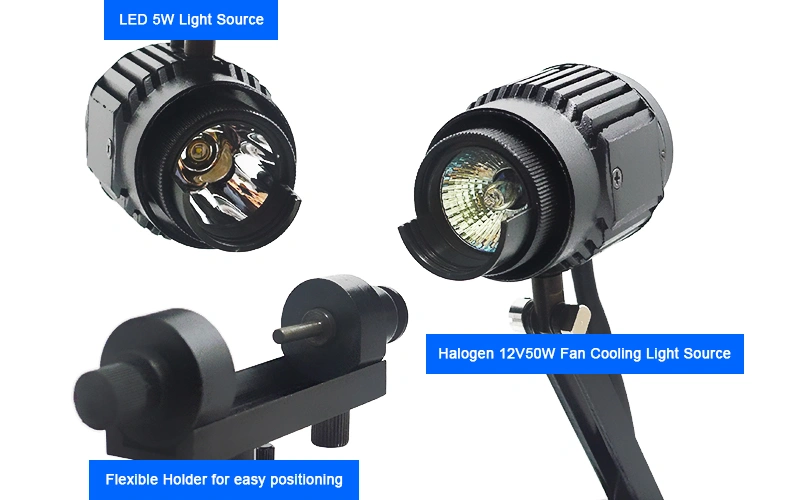

| Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable，2pcs | ||||||
| 5W LED Cold Light, High Brightness, Brightness Adjustable，2pcs | |||||||
| Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface，2pcs | |||||||
| Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights，2pcs | |||||||
| Transmit Bottom Light (Built-in Working Stage) | |||||||
| Ultraviolet Light Lens，2pcs | |||||||
| Filters: Red, Blue, Yellow, Green，2pcs Each Color | |||||||
| Adapter | 0.5x CCD Adapter For Digital Camera,1pc | ||||||
| Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon) | |||||||
| CCD Camera | Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,2048*1536 Pixels, Pixel Size 3.2*3.2μm | ||||||
| Software | Professional Forensic Image Analysis Software | ||||||
| Motorized/Manual Viewfield Changeover Full /Split /Overlapping Image | |||||||
| Motorized/Manual Control Working Stage X/Y/Z 3D Movement | |||||||
| Motorized/Manual Control Round Working Stage Rotation +/- Direction | |||||||
| Motorized/Manual Control To Change Objective Magnification | |||||||
| Power | 80~240V Wide Range Voltage | ||||||
| Bullet Holder | Standard Bullet Holder 2 Sets, Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects | ||||||
| Dimension | Instrument Size 40*60*72cm | ||||||
| Comparison Microscope Forensic Ballistics Optional Accessories | |||||||
| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 | |||||
| Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 | |||||
Recommend Products

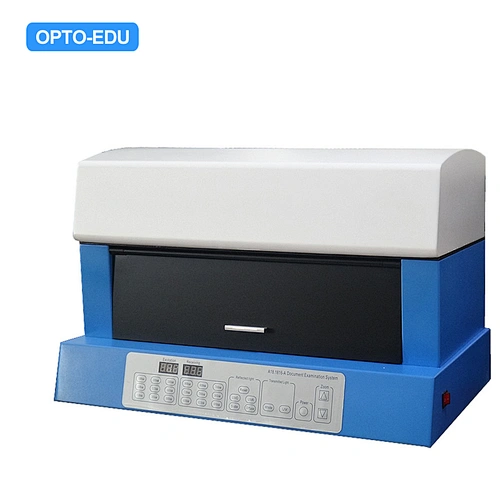

A18.1816-A Published Questioned Documents about Document Examination SystemA18.1816-ASend Inquiry
