A18.1825 Bullet Comparison Microscope Parts and Function, Step Zoom, 3.2~192x

A18.1825

Quantity:

Contact Now

add to cart

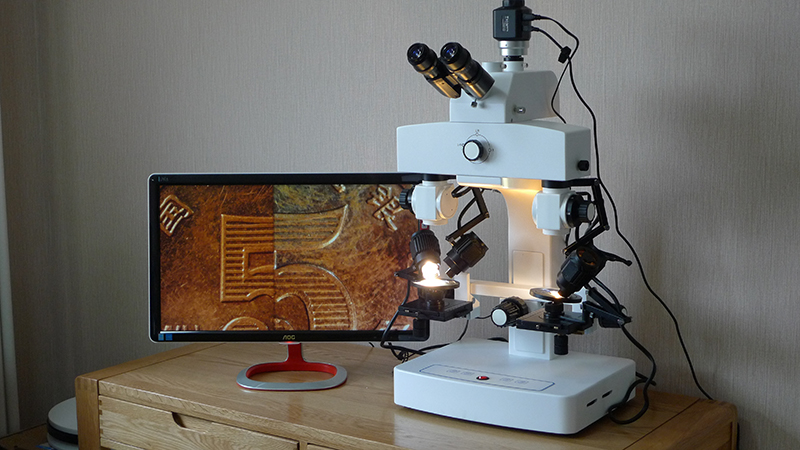

Bullet Comparison Microscope Structure

Parts of Bullet Comparison Microscope

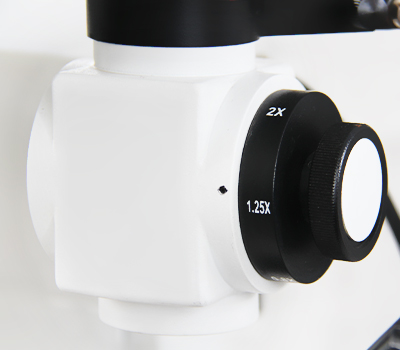

comparison microscope parts: Magnification Switch

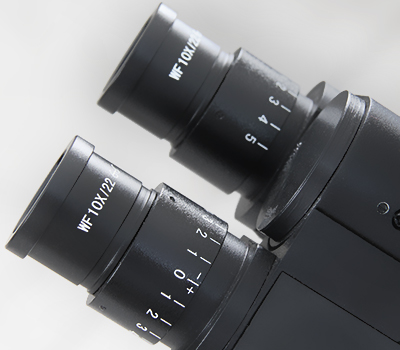

Large Binocular Head

both eyepiece tube diopter+/-5 adjustable, with WF 10X/22mm eyepiece high eyepoint

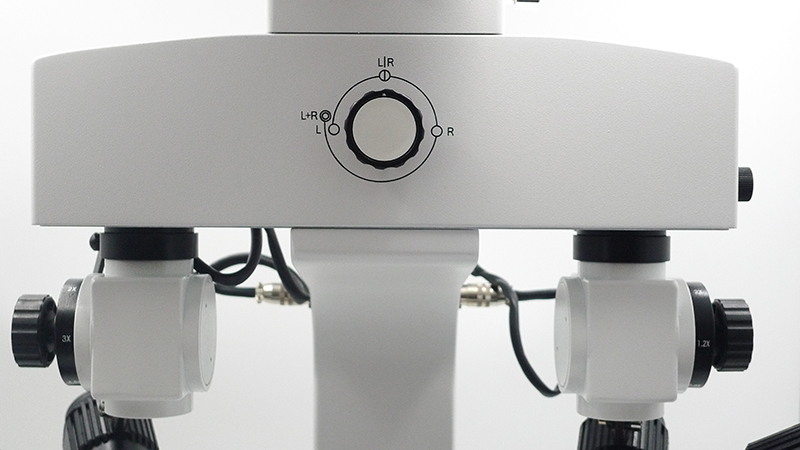

Magnification Switch

5 step zoom plan objective: 0.8x, 1.25x, 2x, 3.2x, 4.8x

Magnification Correction System,with correcting lens

Bullet Comparison Microscope Parts

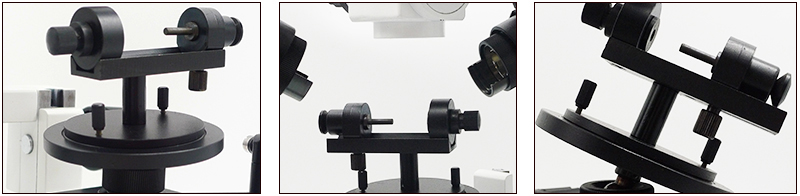

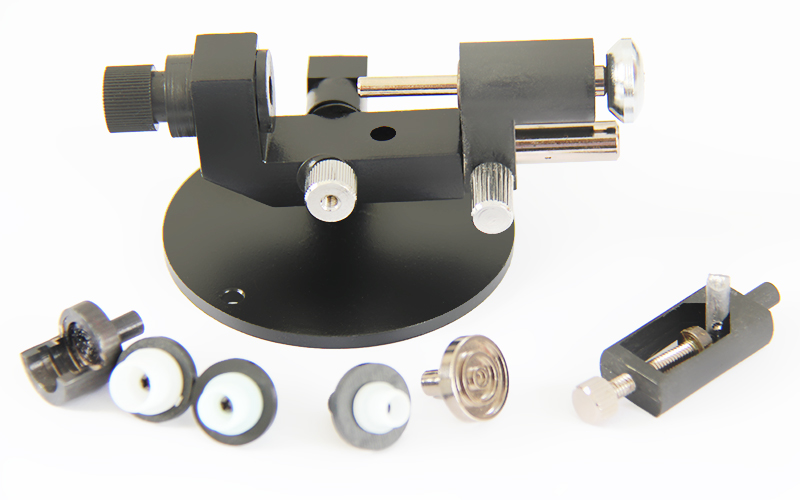

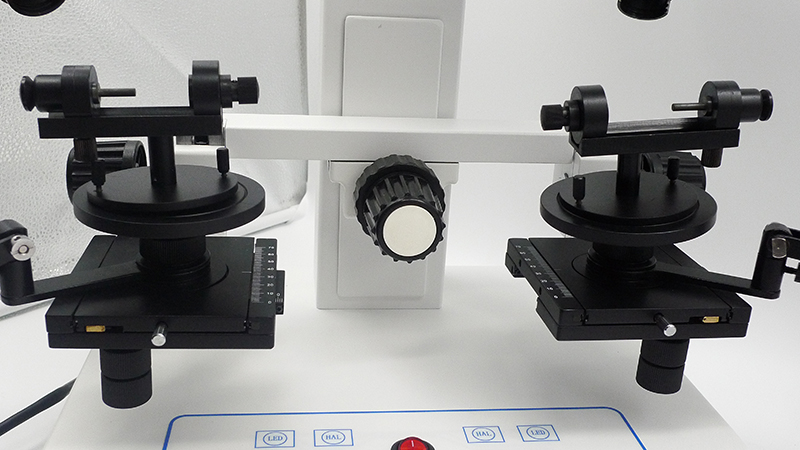

Part of Bullet Comparison Microscope : Bullet Holder Set

To hold & view all kinds of cartridge, bullet, other objects in different angel and position freely. Each Microscope Include 2 sets.

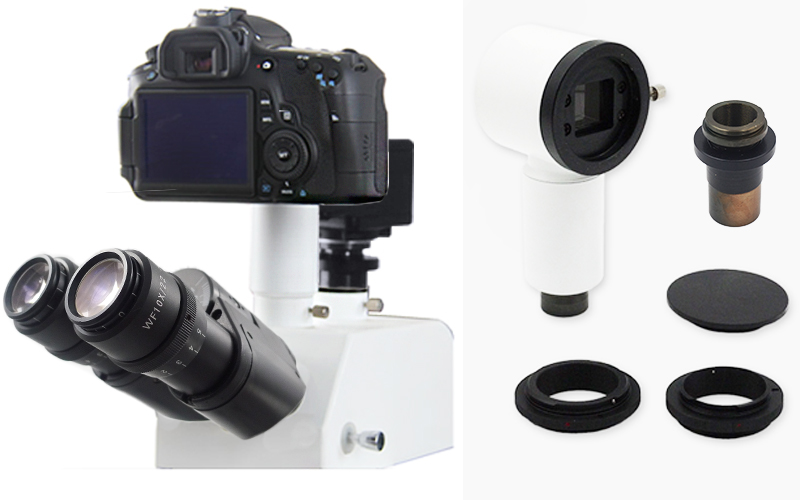

Front View Photo Adapter for digital camera Niko & Olympus; o.5x CCD adapter for digital camera

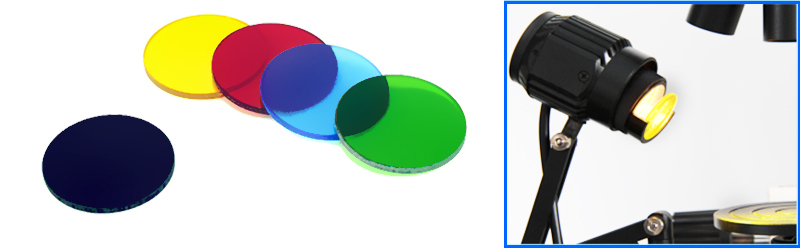

Part of Bullet Comparison Microscope : Ultraviolet Light Len & Filters

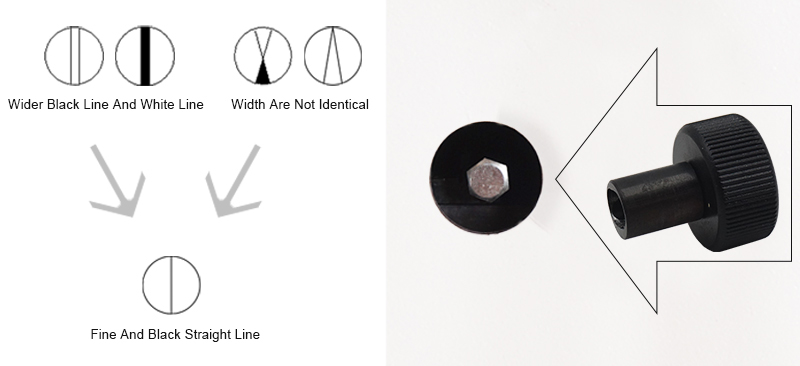

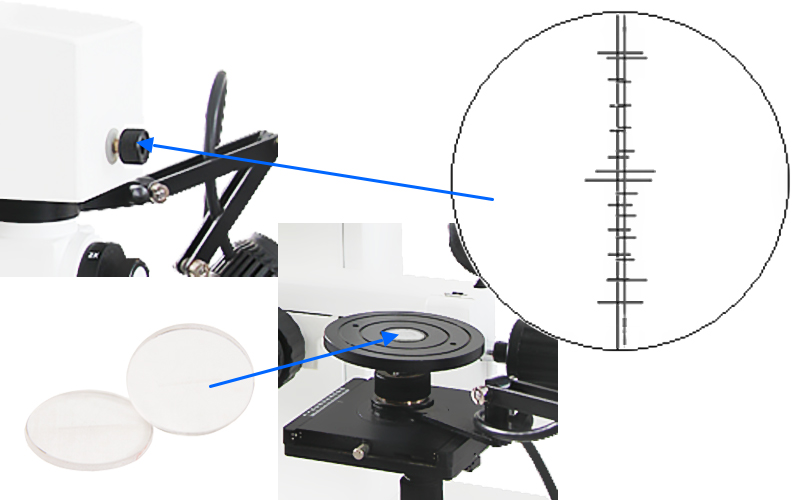

Separation Line Adjust System in Black,with special designed adjust driver

bullet comparison microscope parts: Separation Line Adjust System in Black

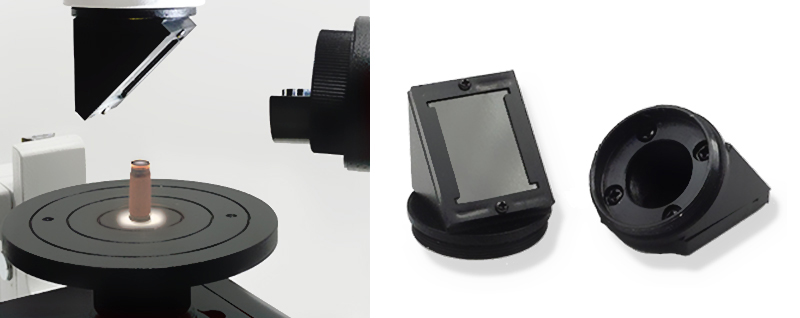

Part of Bullet Comparison Microscope : Coaxial Light Attachment

to get vertical light path for watching inside deep hole bottom

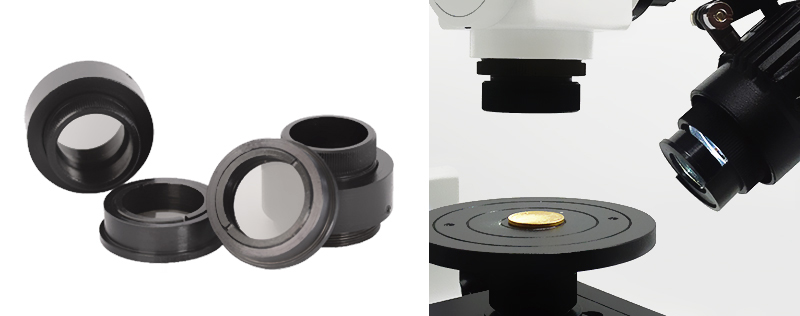

Polarizing Light Lens Set of bullet comparison microscope

Bullet Comparison Microscope Part : Polarizing Light Lens Set

To eliminate flare lights and dazzling lights

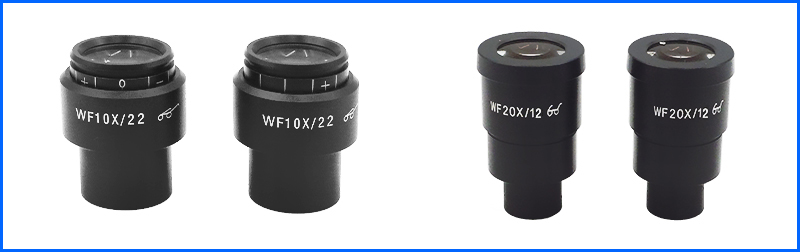

bullet comparison microscope parts: Eyepiece

Eyepiece WF 10x/22mm and WF 20x/12mm,high eyepoint, each 2 pcs included

Auxiliary Lens 0.4x and 2x,each 2 pcs included

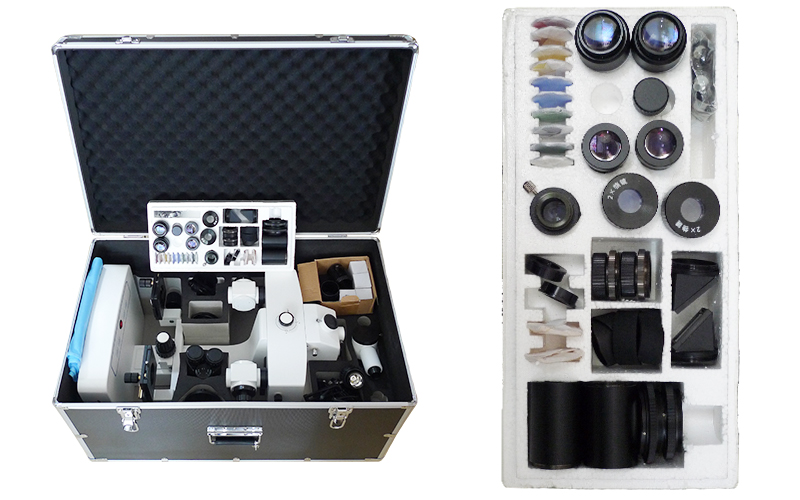

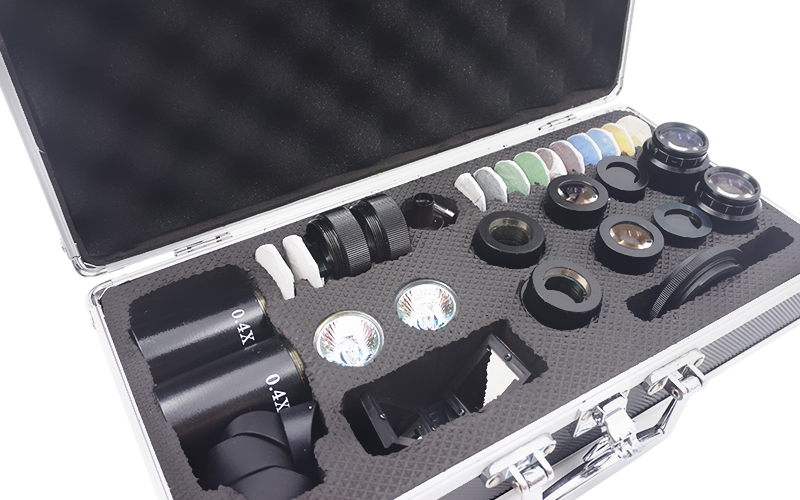

Package of Bullet Comparison Microscope Parts

Bullet Comparison Microscope Accessories Packed in Strong Aluminum Box

Specification of Bullet Comparison Microscope

Mag./Viewfield		Eyepiece10X	Eyepiece20X	Photo Adapter	Video Adapter	Working Distance
Objective	Bridge Body
0.8X	1.2X	9.6X/φ28	19.2X/φ17	2.5X	0.5X	101mm
1.25X		15X/φ18	19.2X/φ17
2X		24X/φ11	48X/φ7
3.2X		36X/φ7	77X/φ4.5
4.8X		58X/φ4.2	115X/φ2.3
Total Magnification with 0.8x objective, auxiliary lens 0.4x, WF10x eyepiece, magnification = 0.80.410*1.2=3.8x

A18.1825 Digital Forensic Bullet Comparison Microscope Parts & Specification
Magnification	3.8x~230x
Head	Binocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
Eyepiece	WF10x/22mm, High Eyepoint
	WF20x/12mm, High Eyepoint
Objective	5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
	Auxiliary Lens 0.4x, 2.0x
Working Distance	101mm
View Field	Dia. 2.3~62mm
Magnification Correcting	Magnification Correction System, With Correcting Lens
Separation Line Adjusting	Separation Line Adjust System In Back, With Special Designed Adjust Driver
Working Stage	Square Manual Working Stage 9090mm, Moving Range 5454*54mm
	Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
	Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm

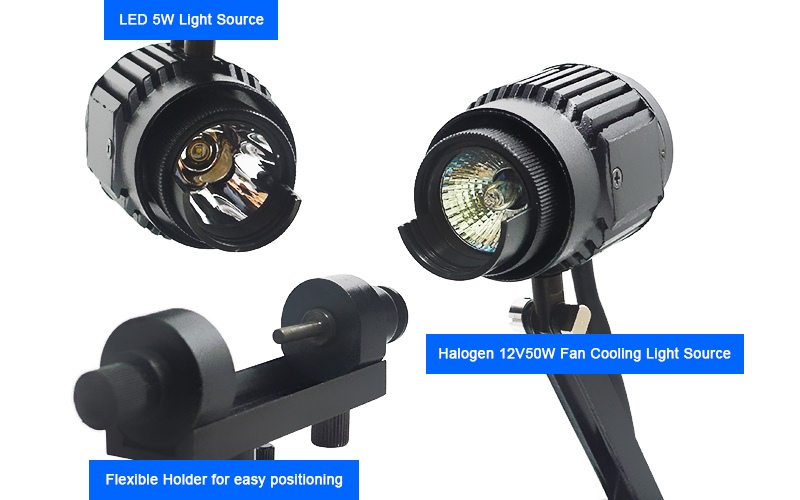

Light Source	12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable，2pcs
	5W LED Cold Light, High Brightness, Brightness Adjustable，2pcs
	Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface，2pcs
	Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights，2pcs
	Ultraviolet Light Lens，2pcs
	Filters: Red, Blue, Yellow, Green，2pcs Each Color
Adapter	0.5x CCD Adapter For Digital Camera,，1pc
	Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
Power	80~240V Wide Range Voltage
Bullet Holder	Standard Bullet Holder 2 Sets
Dimension	Instrument Size 373063cm
Optional Accessories of Bullet Comparison Microscope
Light Source	150W Cold Light Source, With Optical Fiber & Light Collector	A56.1821
Bullet Holder	Motorized Bullet Holder 1 Set	A54.1813
LCD Pad Digital Camera	9.7'' LCD Pad Digital Camera, Android System,SeeA18.1825-LCD	A59.3520
