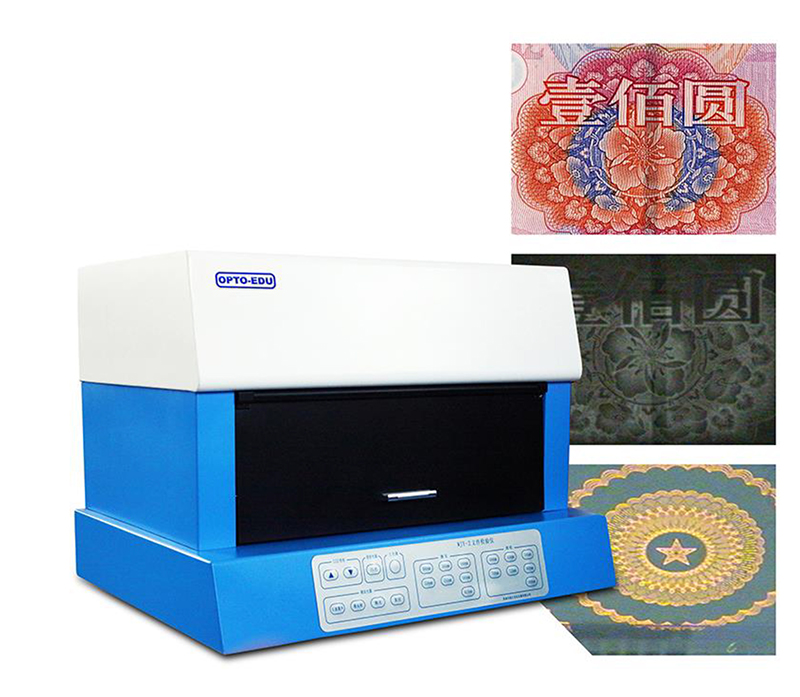

A18.1818 Questioned Document Examination Equipment System

Forensic Science Questioned Document Examination Equipment

The frequently used by document examiners definition the Questioned Document Examination System

Questioned Document Sample Shot

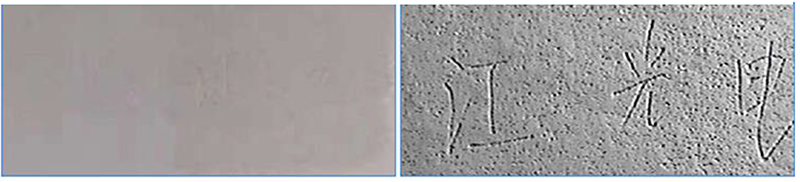

Write On Paper, Indentation Detection On The Paper Below Using Visible Side LED Light, Magnification 5X

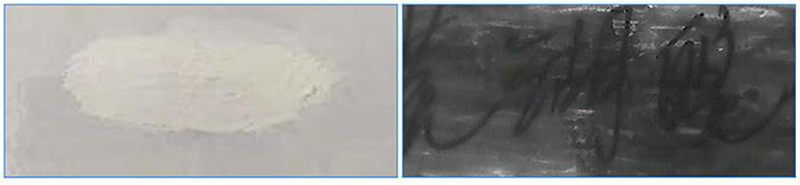

Covered Sample Using Transmit White Light, Receiving Filter 700nm, Magnification 27x

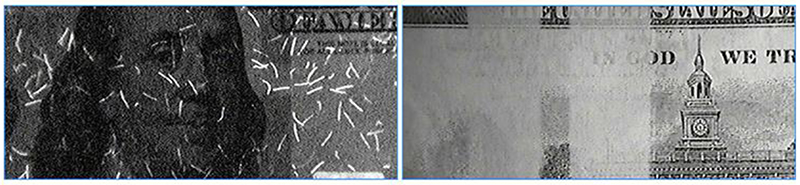

US Dollar Anti-counterfeiting Mark Using The Main Light Source



Fluorescent Anti-counterfeiting Mark Excited Filter 580nm Receiving Filter 740nm, Magnification 6x

Building Anti-counterfeiting Mark Receiving Filter 700nm, Magnification 2x



Items	A18.1818 Document Examination System
Light Source	Strong Light 1x24V/150W Halogen
	Ultra Violet 365nm, 1x10W Check Fluorsent View
	Side Light 1x50w, Check Infra Reflect
	Transmit Light 2x20W White, Check Water Mark
	Excited Filter: High Transmittance Narrow Half Width Band-pass Filter 000nm, 365nm, 440nm, 530nm, 555nm, 585nm, 615nm
	Receiving Filter: 000nm, 450nm, 565nm, 700nm, 720nm, 800nm, 900nm
Image Reception	1~30x Motorized Zoom, 1/3"CCD 800 Lines Digital Camera
Software	Incl. Software+Laptop
Packing	Wooden Packing
