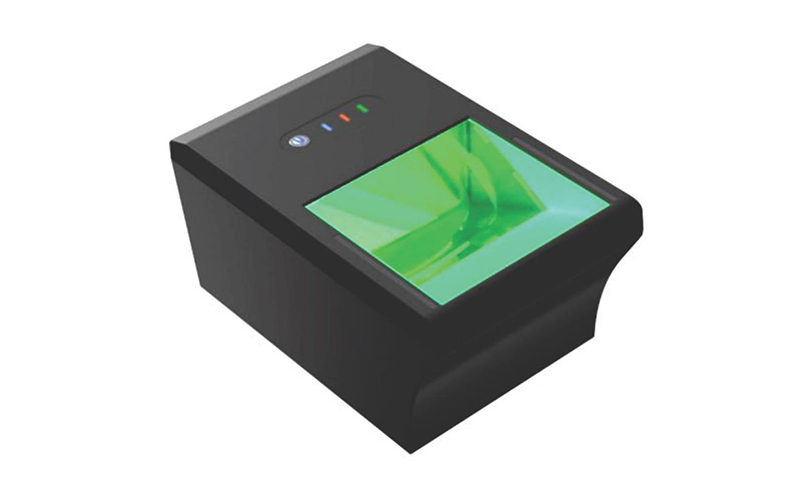

A18.1861 Palm + Finger Scanner

A18.1861 is the compact and lightest palm scanner fully certified with FBI’s IAFIS Appendix-F specification which enables the scanner to deliver reliable and superior image quality and make it the optimal capturing device for criminal enrollment or background check.   A18.1861 employs the most advanced optical technology and dedicated special lighting source plus the enhanced fingerprint identification algorithm that allow the high speed finger and palmprint capturing including rolled prints.   The integrated automatic capture functionality ensures rapid capturing of high quality image for biometric data collection and eliminates the possible reprint issues.

KEY FEATURES Of Palm Fingerprinting Biometric Scanner Equipment

• Sliding detection for flat prints capturing

• Latent prints and halo elimination from recent scans

• Automatic device calibration when scanner starts up

• Auto segmentation of slaps into discrete single image

• Automatic fingerprint image quality checking

• Correct finger position and slap completeness check

• Auto capture functionality to eliminate reprint issues

• Smart status indicators for intuitive instructions

• Optional prism heater upon customer requirements

USE CASES Of Mobile Palm Fingerprinting Biometric Scanner Equipment

• Law enforcement

• Cabinet and Kiosk integration

• Criminal and suspect enrollment

• Background check

• Inmates registration



A18.1861 Palm & Finger Scanner, With Comparison Software, FBI's Appendix-F Certified
ImageTypesFlats, rolls, slaps, lower, upper and writer’s palm
ImageSizePalm prints up to 5.0” x 5.0”
Flat 4-fingers slaps prints up to 3.2” x 3.0”
Single rolled fingerprints up to 1.6” x 1.5”
ImageResolution500 dpi, 256 levels of gray
ImageQualityFBI’s IAFIS IQS Appendix-F certified
ImageFormatBMP, WSQ, ISO/IEC 19794-4, ISO/IEC 19794-2
AcquisitionModeAuto capture and manual mode
VisualIndicatorsIntuitive 3 LED status indicators
BuzzerOn board programmable
PowerSupply100-220V AC, 50-60Hz
InterfaceUSB3.0
Weight3.2kg
Dimensions(L*W*H)256mm x 164mm x 128mm
OperatingSystemsWindows, Linux OS
Software & SDKsScan demo, APIs for system integration
OperatingTemperature0°C to 50°C
StorageTemperature-20°C to 60°C
HumidityRange10% to 90%, non-condensing
